PolyDESLAGGING

System description

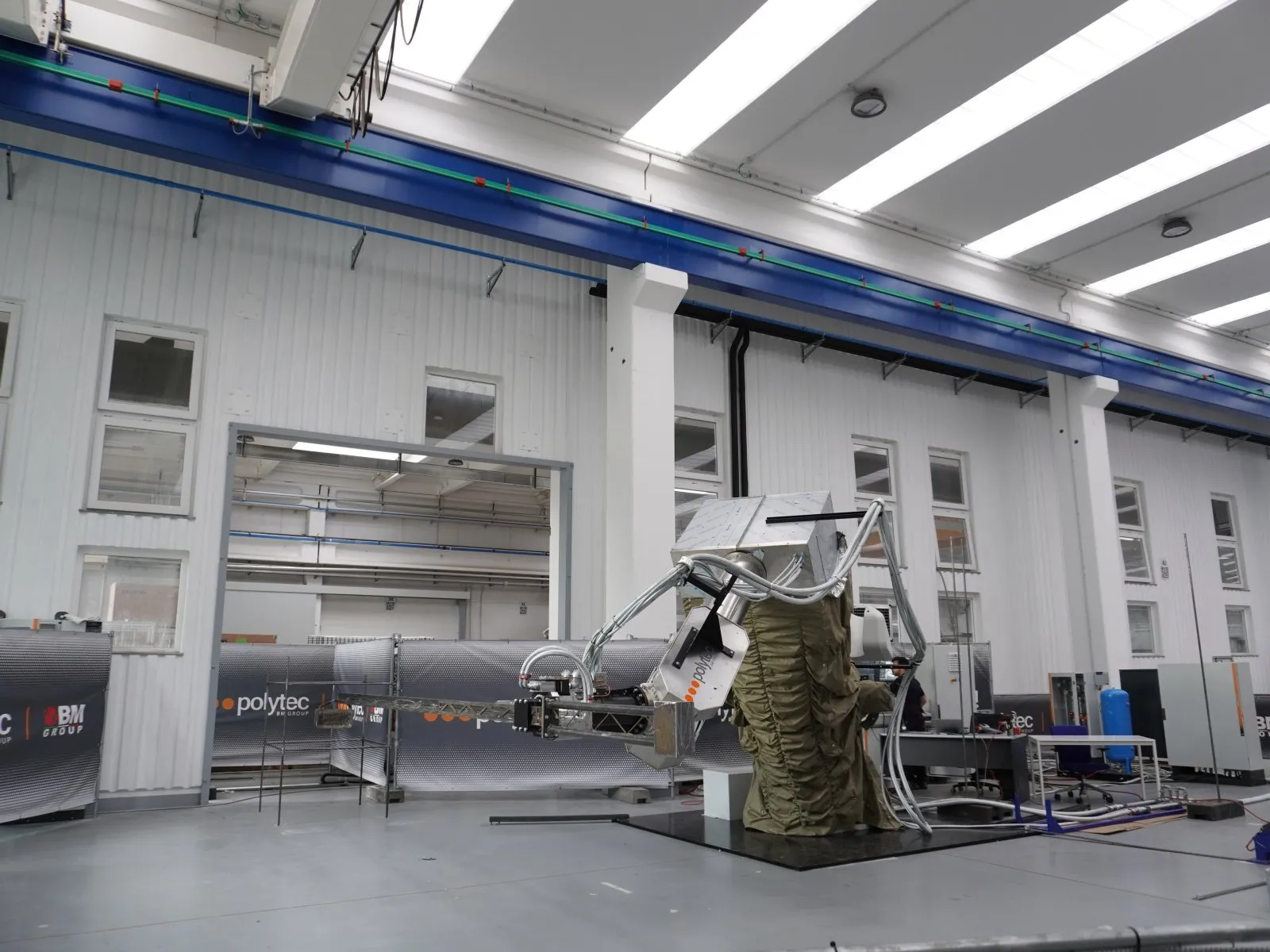

PolyDESLAGGING is an advanced robotic solution designed to automate slag removal from the Electric Arc Furnace (EAF) before tapping. Equipped with a custom-designed, water-cooled tool and an advanced vision system, the robot accurately removes slag while providing the operator with a real-time view of the steel bath.
The system can operate in both automatic and operator-assisted manual modes, ensuring maximum flexibility while improving safety, process consistency, and furnace productivity in the most demanding steelmaking environments.

System highlights

settings

Main components

Industrial articulated robot
Custom water-cooled deslagging tool designed for high-temperature operation
Machine vision system for real-time steel bath monitoring and slag detection
Automatic steel sampling system
Automatic oxygen and temperature measurement system
Automatic consumable cartridge and probe changer
Water cooling circuit
PLC automation and safety control
User-friendly HMI

star

Benefits

Fully automated slag removal before tapping
Improved operator safety by removing personnel from hazardous furnace areas
High positioning accuracy with ±10 mm deslagging tolerance
Real-time visualization of the steel bath through the integrated vision system
Consistent and repeatable deslagging process
Reduced tapping time and increased furnace productivity
Improved steel quality through optimized slag removal
High reliability in harsh steelmaking environments

Technical specifications

Max extension of tool “spoon”

1.000,0 mm over the furnace center

Slag accumulation area

From max extension to 2,5m towards the slag door

Slag skimming area

From slag accumulation area end to deslagging door exit (1m inside the furnace from deslagging door exit)

Robotic cell for automatic EAF steel bath deslagging

System description

Technical specifications
