PolyPRO

Robot for screwing protectors on threaded seamless pipes

PolyPRO

System description

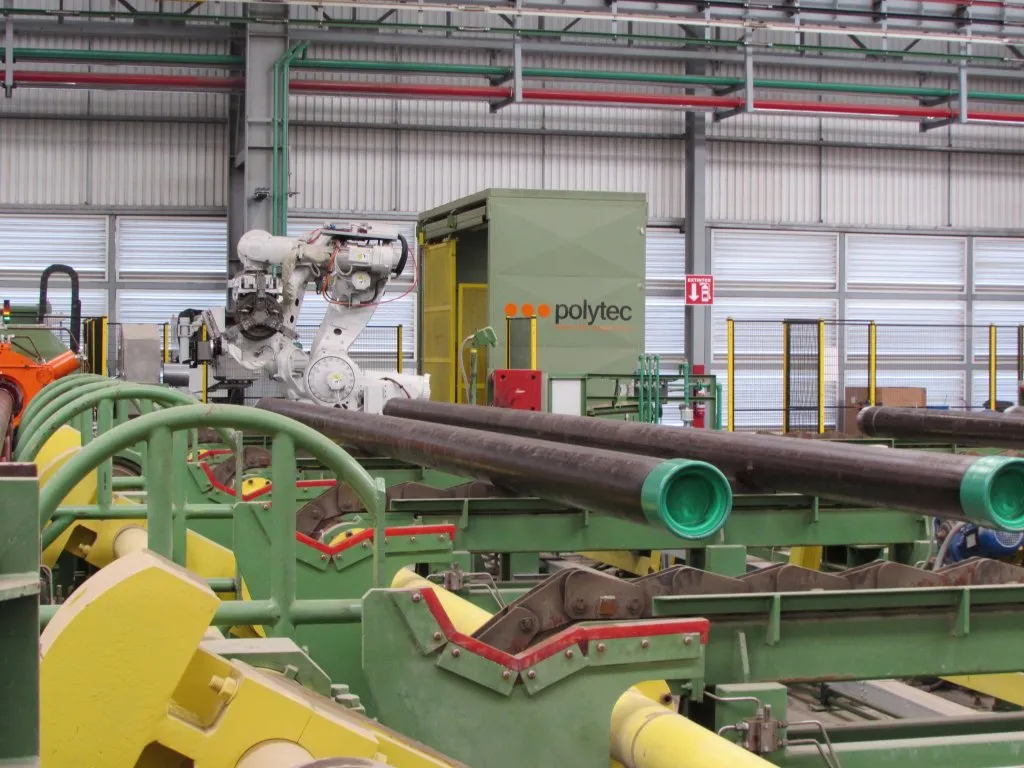

PolyPRO is an intelligent robotic system designed for the automatic installation of pin and box thread protectors on OCTG and threaded pipes. Featuring a patented floating screwing head, the system automatically compensates for alignment variations, ensuring reliable and precise protector installation while maximizing productivity.
Designed for continuous operation in harsh industrial environments, PolyPRO can be equipped with an extended protector magazine or a fully automatic depalletizing system to minimize operator intervention and reduce machine downtime.

PolyPRO

System highlights

settings

Main components

  • Industrial articulated robot
  • Patented floating screwing head with automatic alignment compensation

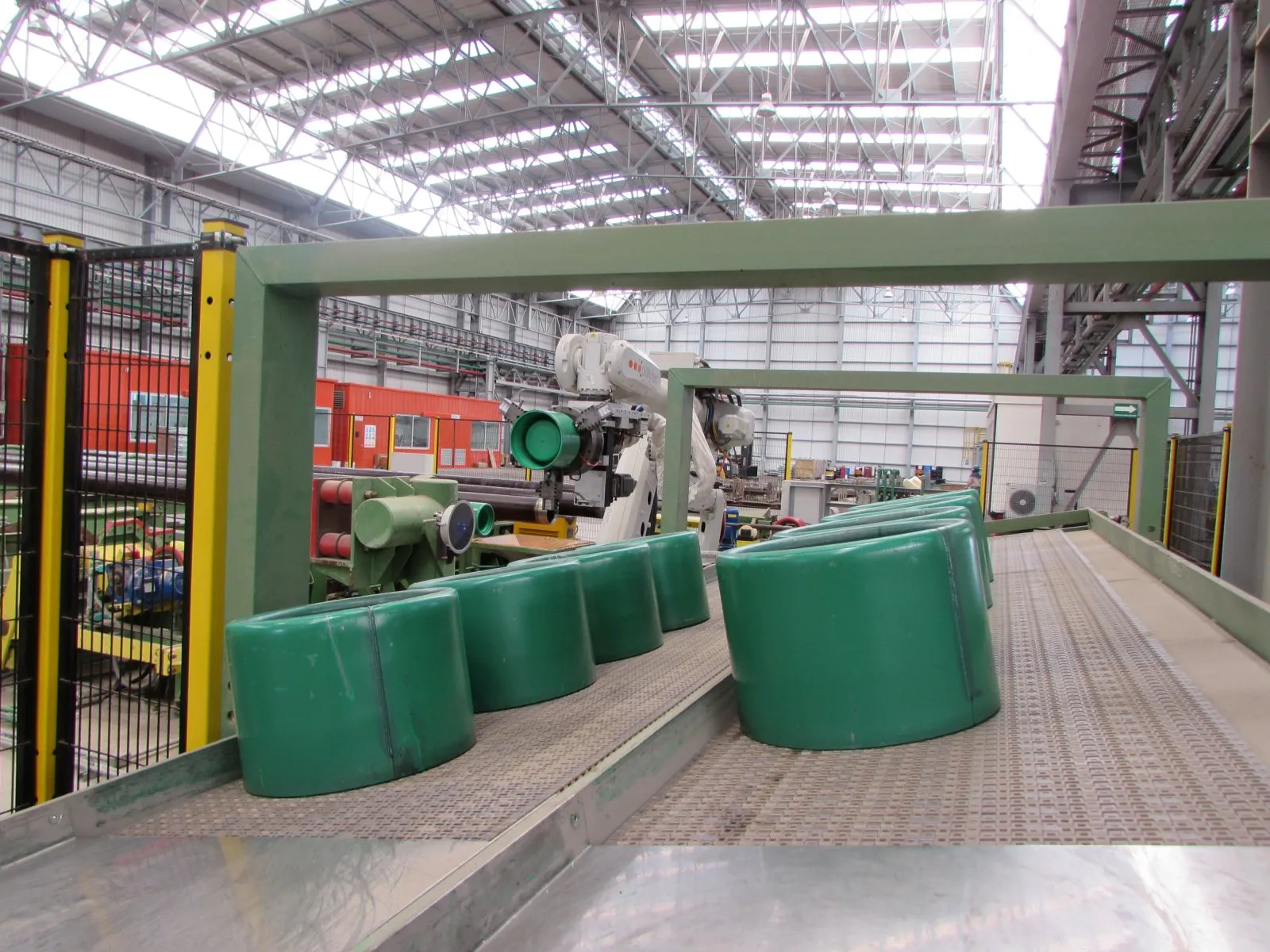

  • Automatic protector dispenser
  • Multi-floor protector warehouse for high-capacity storage
  • Automatic protector depalletizing system (optional)
  • Pipe locking system during screwing (optional)
  • Pipe diameter measurement system (optional)
star

Benefits

  • Fully automatic installation of pin and box thread protectors
  • Patented floating head compensates for pipe alignment variations
  • High reliability and repeatable screwing quality
  • Increased operator safety by eliminating manual protector installation
  • Protector warehouse can be refilled without stopping production
  • Reduced setup time and operator intervention
  • Easy integration into existing pipe finishing lines

Technical specifications

Cycle time

< 30 s

Range of pipe diameter

From 2 to 20 inches

Number of protector warehouse

According to customer need

Nominal tightening torque

3000 nm

Included

  • VPN remote access and maintenance
  • User-friendly HMI interface
