PolyMOVE plastic tube

Robotic cell for unloading and palletizing plastic wire coils

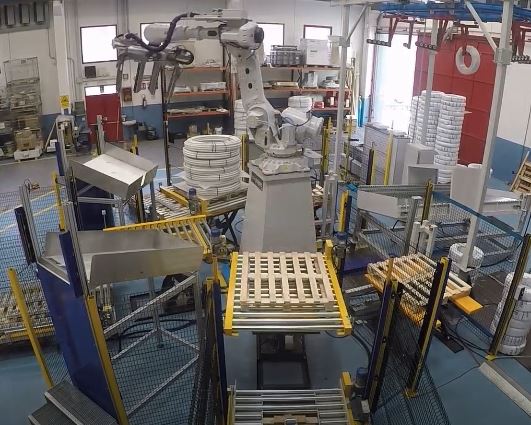

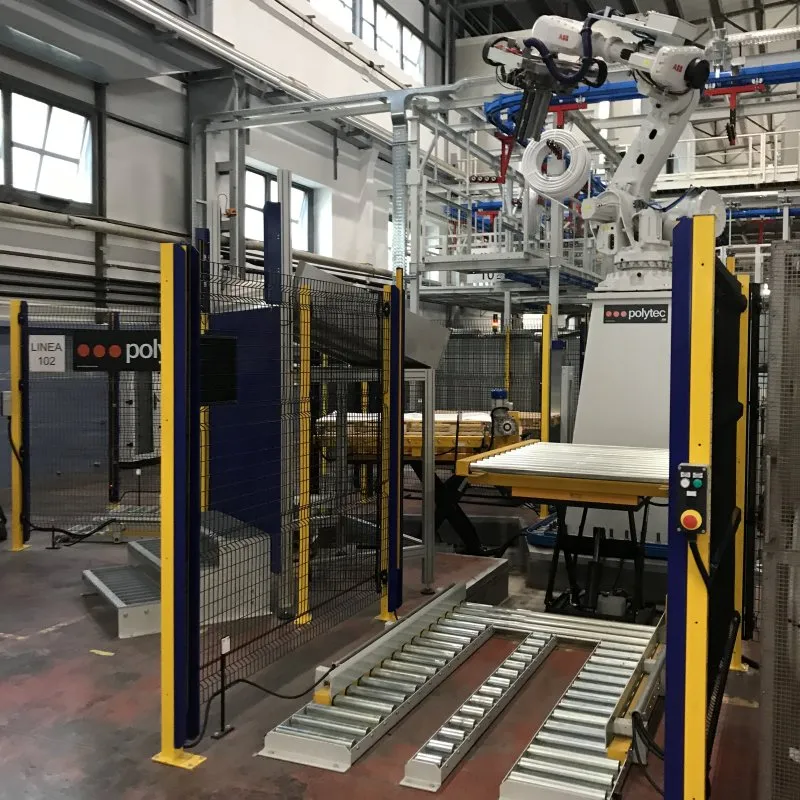

Robotic coil unloading and palletizing cell

System description

Polytec designed, supplied, installed, and commissioned a fully automated robotic cell for the unloading of plastic wire coils from five coilers and their automatic palletizing onto dedicated pallets. The system automates the complete handling process, from coil unloading and pallet management to interlayer positioning, ensuring continuous production, high reliability, and maximum operator safety. Designed for heavy-duty industrial environments, the cell is ready for future expansion with the integration of a sixth coiler, protecting the customer’s investment and providing long-term production flexibility.

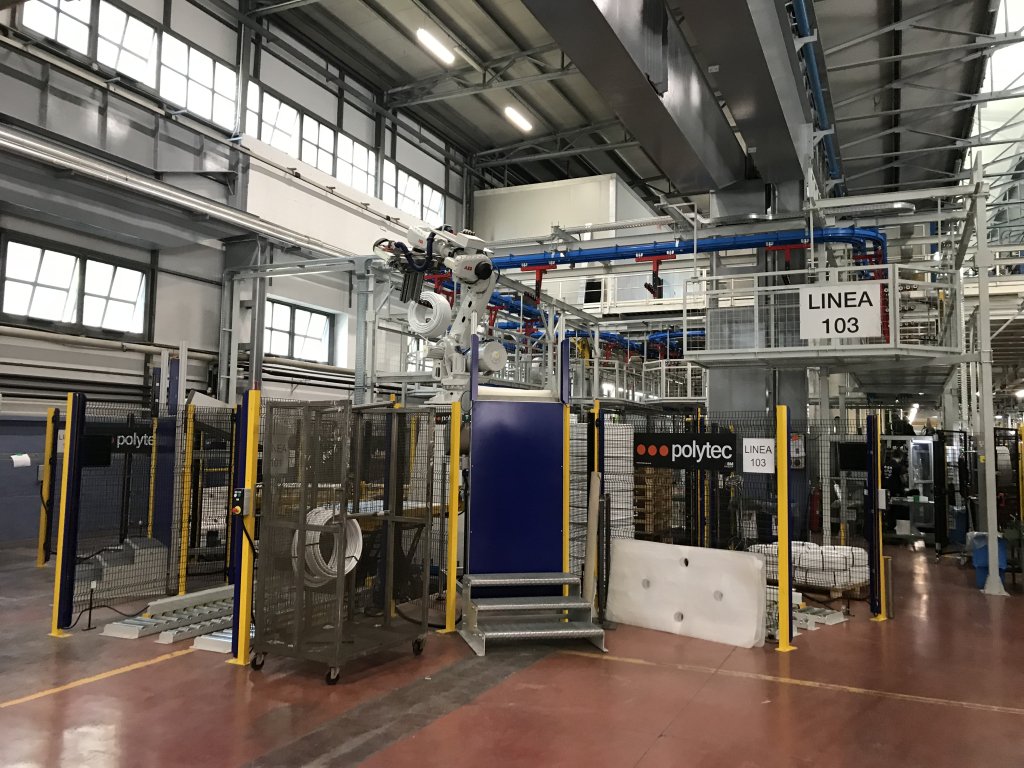

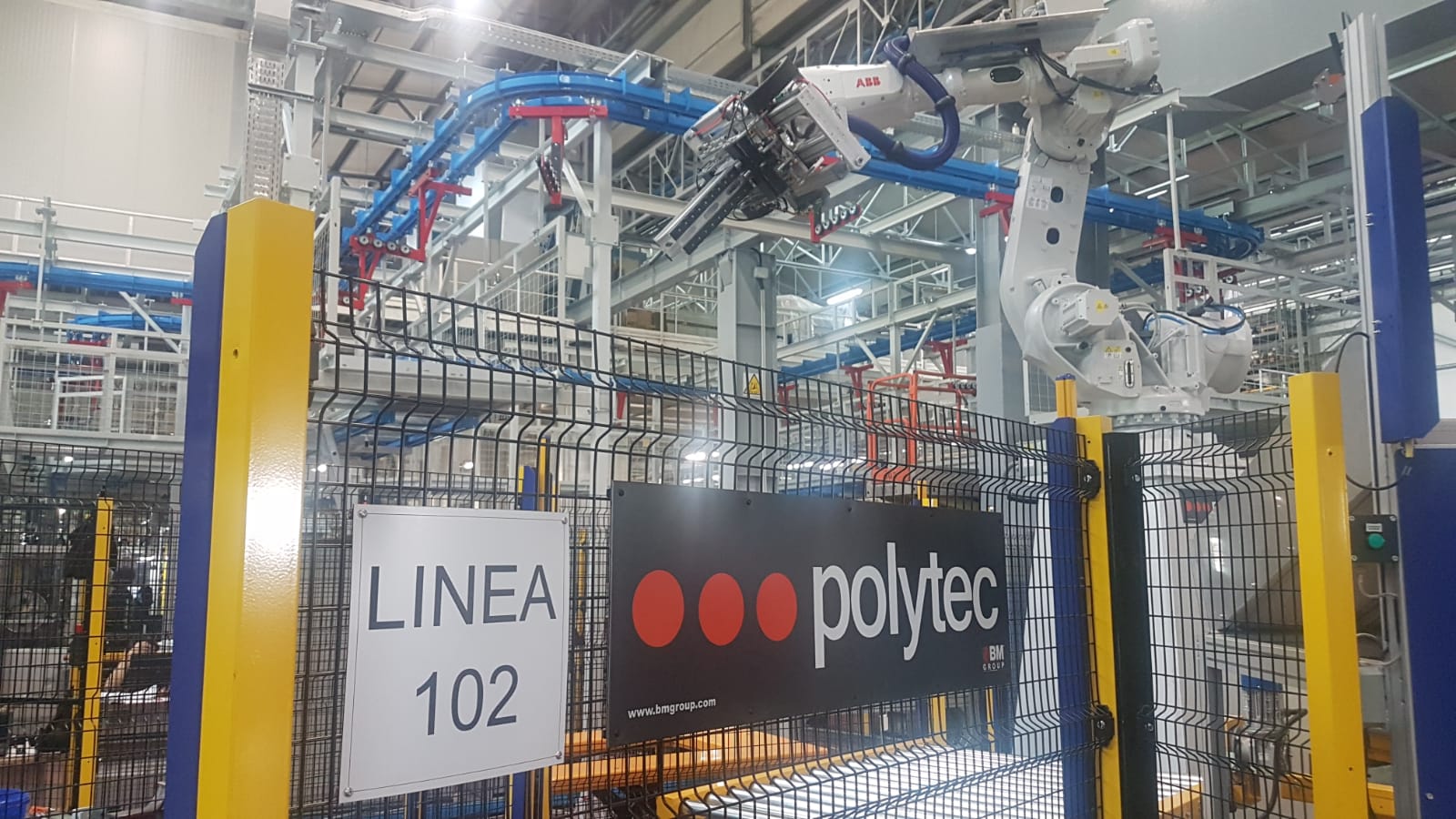

Robotic coil unloading and palletizing cell

System highlights

settings

Main components

  • Industrial articulated robot
  • Custom coil handling gripper for unloading coils from the coilers
  • Integrated pallet and interlayer handling tool
  • Dedicated pallet discharge roller conveyors (one for each coiler)
  • Automatic pallet destackers with output roller conveyors
  • Interlayer storage stations for two different sizes and two product types
  • System monitoring sensors
  • Chain conveyor system
  • Coiler unloading and chain loading system
star

Benefits

  • Automatic unloading of coils from five production lines
  • Fully automated palletizing with automatic pallet and interlayer management
  • Continuous-duty system designed for 24/7 operation
  • Heavy-duty mechanical design for demanding industrial environments
  • Seamless integration with existing production lines
  • Improved operator safety by eliminating manual handling operations

Client

na

Location

Italy

Market

Plastic & rubber
